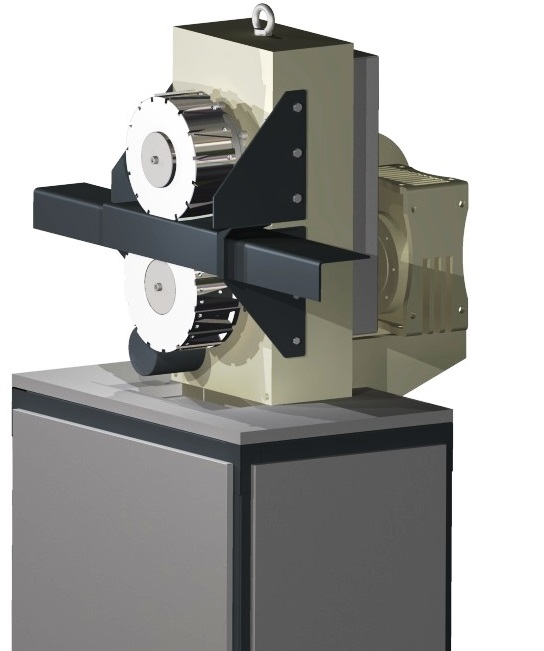

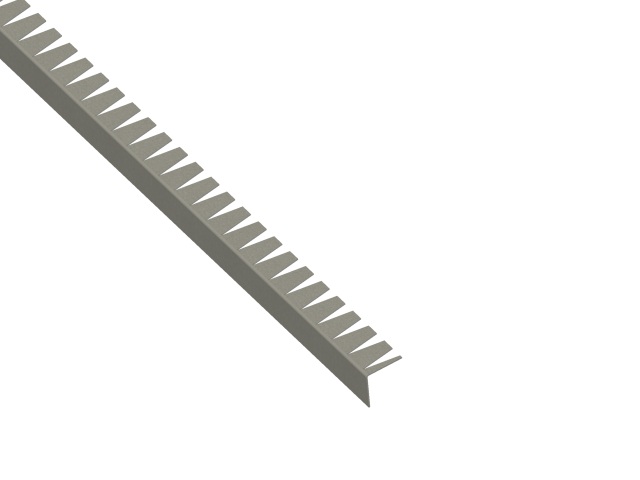

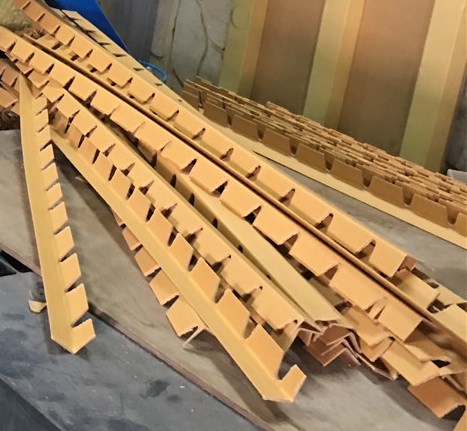

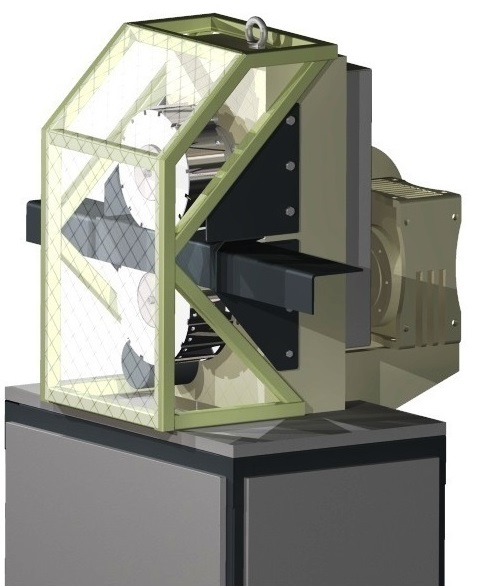

-This is our machine which is designed for production of the cardboard reel edge protectors that are used to cover the round edges of products to avoid impact and dispersion, using our patented rotary punch technology. Since it uses the rotary punching technology to perforate the cardboard material, it is predicted that the life of the punching tools will be beyond comparison to its counterparts.

• Production speed                           1-24 m/min (Speed can be extended to 50m/min)
• Perforation Bracket thickness        2-4 mmm
• Max Bracket edge width               90 mm
• Motor and drive units                   2,2 kW tree-phase  AC Motor (GAMAK)
• Speed Control                        Delta Vfd-el Serisi
• Die material                                       2379 Böhler brand Steel with 59±1 HRC stiffness
• Machine dimensions                     80x70x140 cm
• Approximate weight                     700 kg
