Products Details

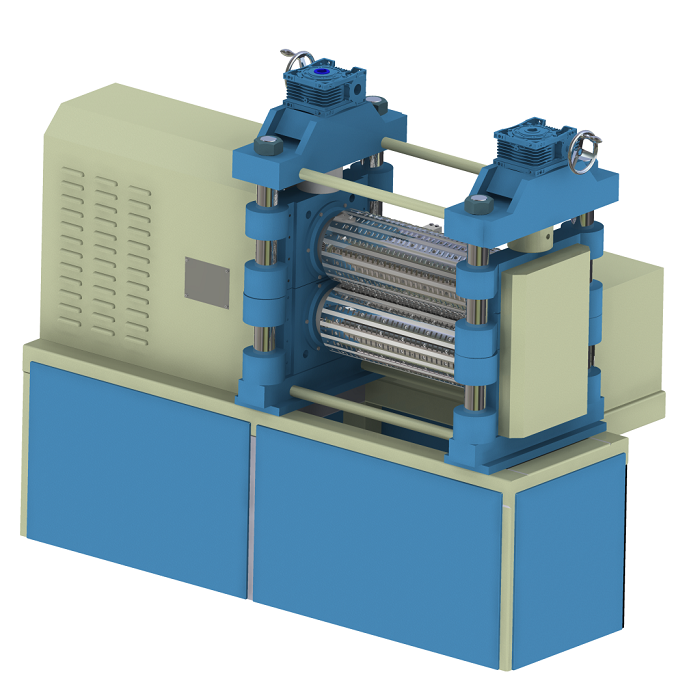

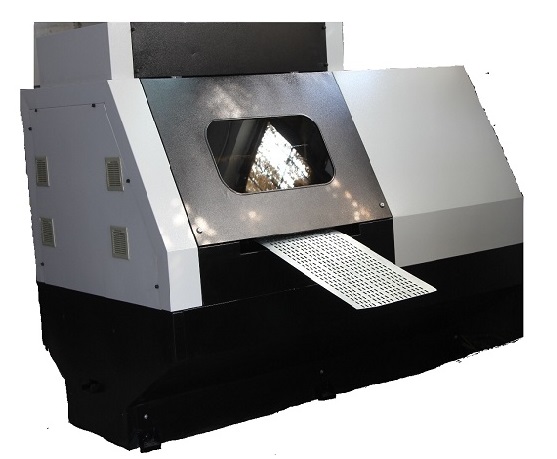

Rotary Punch Cable Tray Producrion Line

Product Code: 21
Product Groups: Producing Machine

  • Machine size                                                                  2,00 m * 2,50 m * 1,50 m
  • Perforation width                                                         10-81 cm
  • Production speed                                                         1-24 m/min
  • Perforation thickness                                                   1-1.5 mm
  • Motor and drive Units                                                 22 kW A.C motor with Speed control units
  • Die material                                                                    2379 Böhler brand Steel with 60 HRC stiffness
  • Control Panel                                                                 Available
  • Remote Error Detection                                              Available
