Advanced Omega Ventilated Profile Rotary Punch Machine: Industrial-Grade Precision for Ventilation Solutions

Revolutionary Rotary Punch Technology for Ventilated Profiles

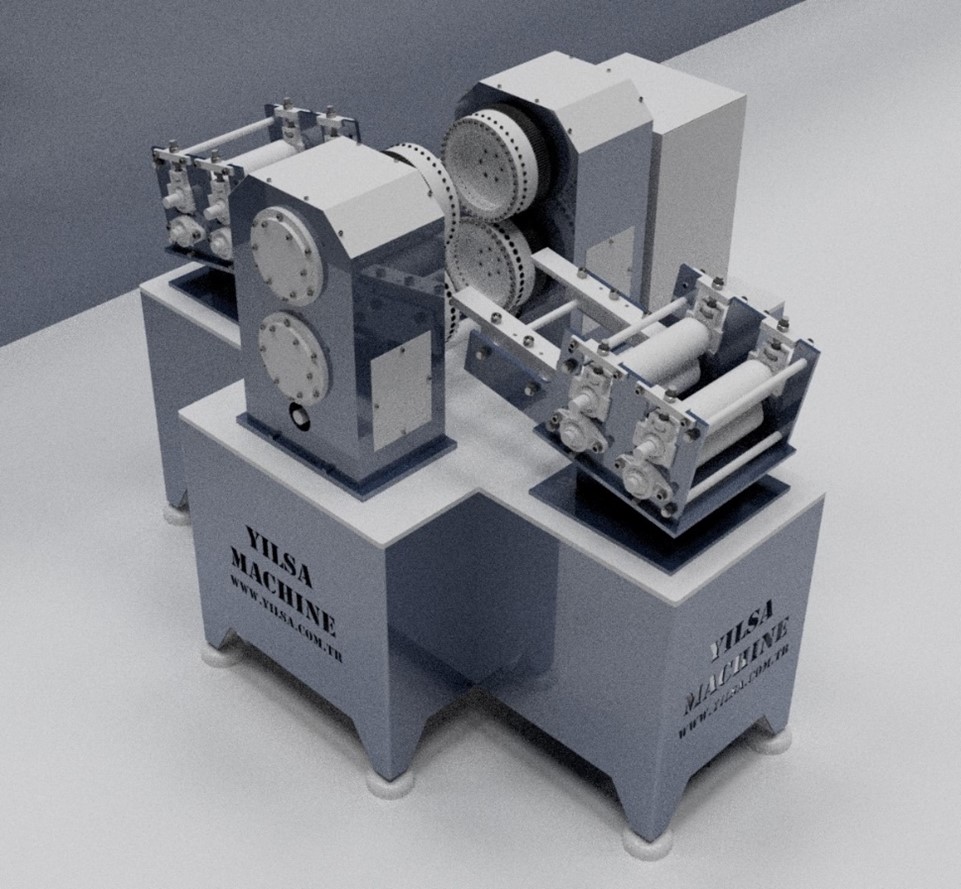

Experience superior efficiency with our state-of-the-art Omega Ventilated Profile Rotary Punch Machine, specifically engineered for high-precision perforation of ventilated omega profiles. Featuring innovative rotary punch technology with synchronized male and female die drums, this machine delivers exceptional performance at speeds up to 17 meters per minute, ensuring perfect ventilation patterns every time.

Key Technical Advantages:

• Versatile Width Range: Accommodates 143-253mm unbent widths for diverse ventilation applications
• Consistent Performance: Precise 2mm thickness processing for optimal ventilation patterns
• High-Speed Operation: Achieves up to 17 m/min punching speed for efficient production
• Premium Components: Features Böhler 2379 steel dies with 58-60 HRC hardness for long-lasting performance
• Efficient Power System: Equipped with 2.2 kW, 0.75 kW, and 0.75 kW AC motors with Variable Speed Drives

Advanced Features for Maximum Productivity

Smart Control System

• Intuitive HMI interface for real-time monitoring
• Automatic and manual operation modes
• Built-in diagnostic capabilities for consistent quality
• Comprehensive error logging and maintenance tracking

Robust Design for Continuous Operation

• Compact footprint: 2m x 1.5m x 1.5m for efficient space utilization
• Durable construction: 1.7 tons total weight ensuring stability
• Dual driver systems for optimal material handling
• Adjustable drum positioning for various profile widths

Easy Maintenance and Tool Management

• Quick-access setscrew bolt system for rapid die replacement
• 6mm grinding allowance on both male and female dies
• Simple die height adjustment after sharpening
• User-friendly maintenance features for minimal downtime

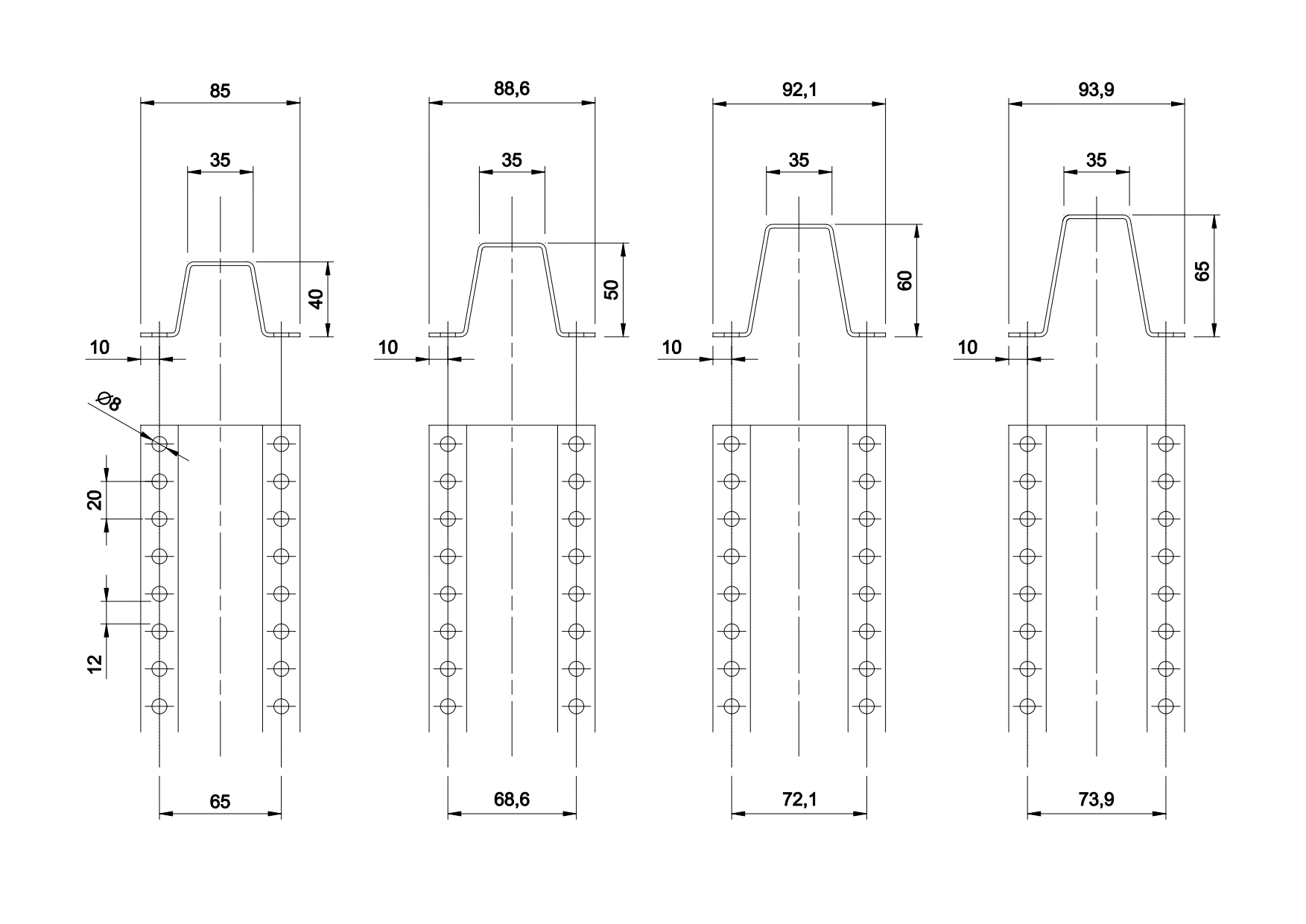

Optimized for Ventilation Profile Production

Perfect for manufacturers specializing in ventilated omega profiles for construction and industrial applications. The machine's innovative design ensures precise perforation patterns and smooth material flow, maximizing production efficiency while maintaining superior ventilation quality.

Complete Support Package

• Professional installation and setup
• Comprehensive 1-year warranty on mechanical parts
• Dedicated technical support team
• Operator training included
• Full documentation and certificates provided

Elevate your ventilated profile production capabilities with our Omega Ventilated Profile Rotary Punch Machine - the perfect blend of precision engineering and industrial reliability for modern ventilation solutions.
